Case,
adapter & back plate are cast iron Cl.30 construction.
Impeller,
sleeve and wear ring, are brass construction.
Epoxy
coated inside and out.
The
screws, impeller washer and case screws, are Stainless
steel.
The
back pull-out design allows quick and easy maintenance,
without disturbing the piping.
Carbon-Ceramic
and Buna-N, mechanical seal.
Impeller
dynamically balanced for longer motor bearing life.
High
water flow capabilities for maximum performance.

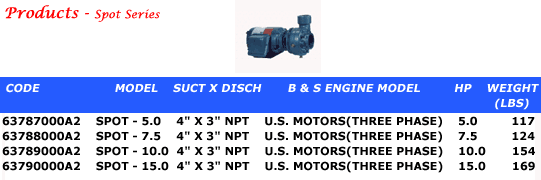

Pump-ends
available for single or three-phases motors, 60Hz,
JM-NEMA frames 5, 7.5, 10, 15 HP.
To
be used in commercial and large residential pools.
